Correction of redox measurements.

Photo by Chris Liverani on Unsplash

The post was last updated on 2022-03-01.

Generally, redox data needs to be corrected relative to the potential of the standard hydrogen electrode (SHE). For instance, if a Ag-AgCl electrode with a 3 M KCl solution is used the deviation is 207 mV at 25 °C. This value needs to be added towards the potential by:

EH = EAg-AgCl + 207

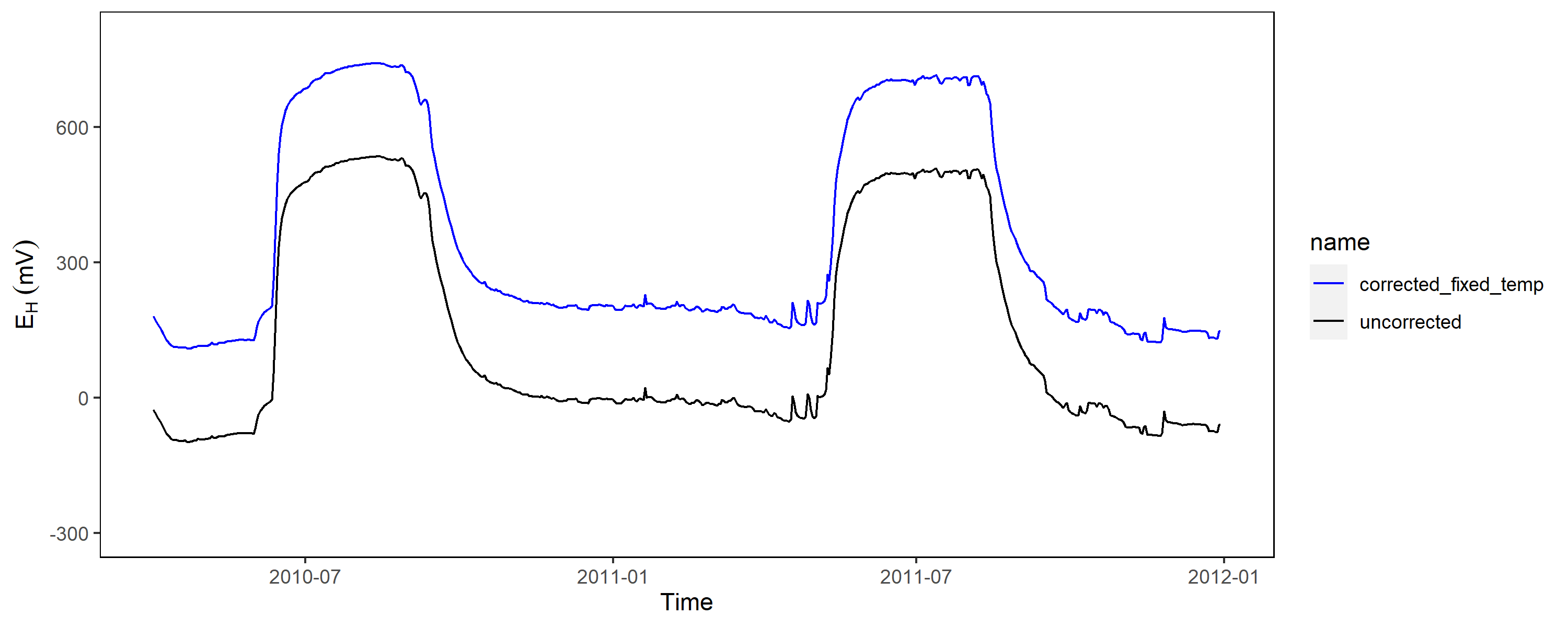

Obviously, in most applications the reference electrode is positioned close to the soil surface (sometimes within a salt bridge) and therefore a constant factor of 207 mV is not really valid, since temperature fluctuations are common if you work outside the tropics.

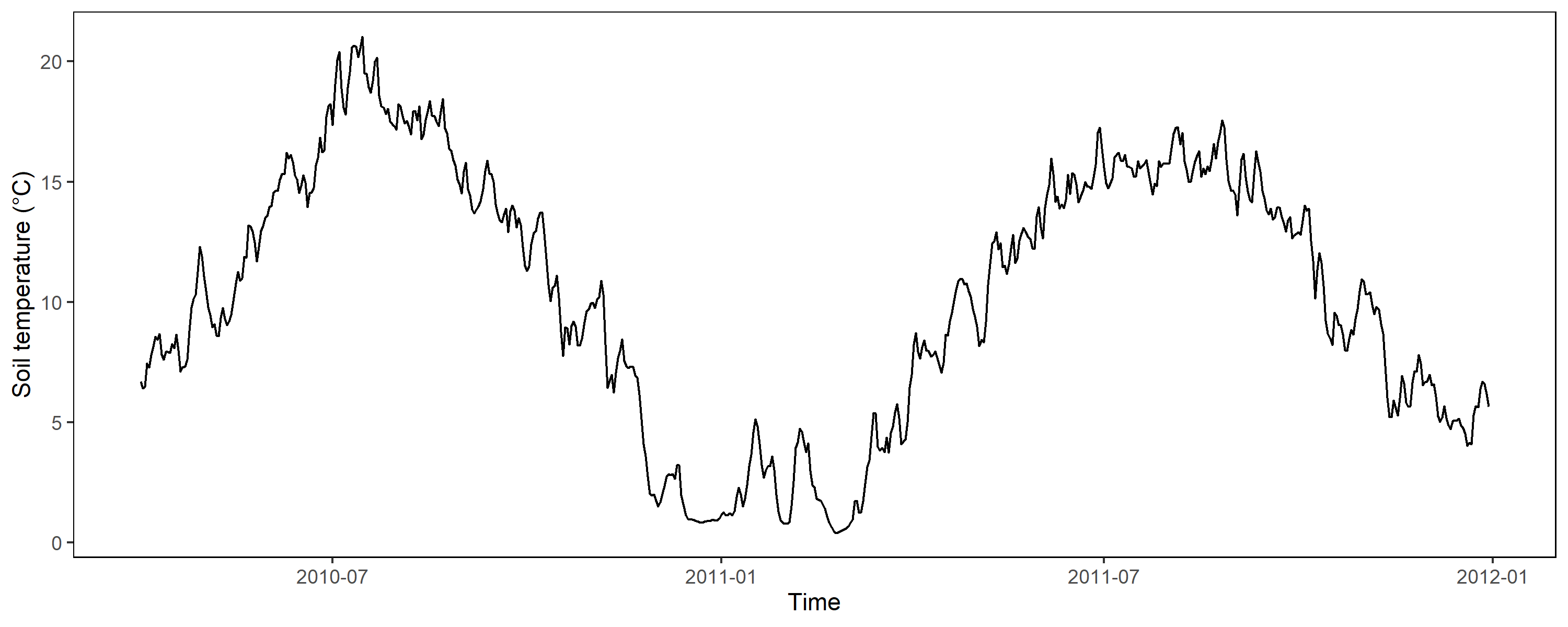

As shown above with data from Polder Speicherkoog, the soil temperature in 10 cm depth is close to 0 °C during winter and up to 20 °C in the summer months. The relationship of temperature and potential from the reference electrode is linear and we should employ this into our correction factor to be more precisely:

EH = EAg-AgCl + intercept + (slope * soil temperature)

The deviation is not much but if you have the temperature available, why should you not use it compensate technical issues being present in the data?!

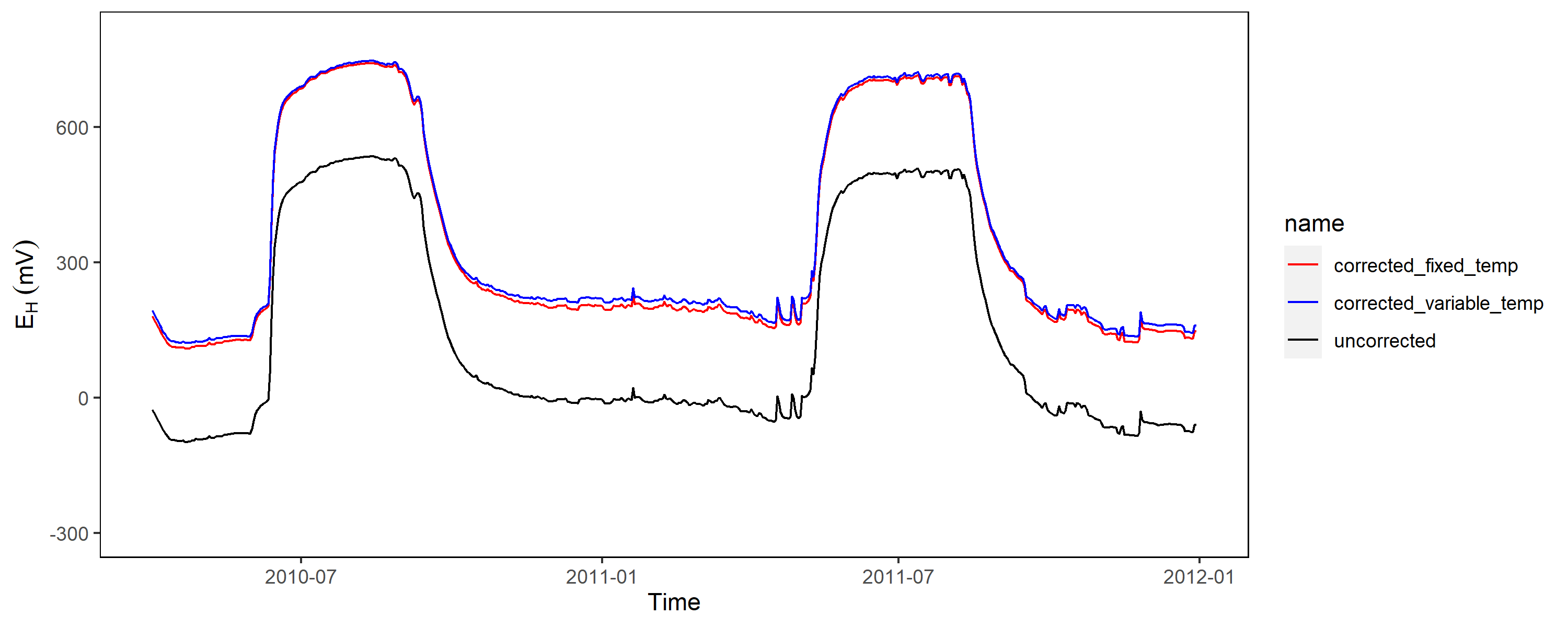

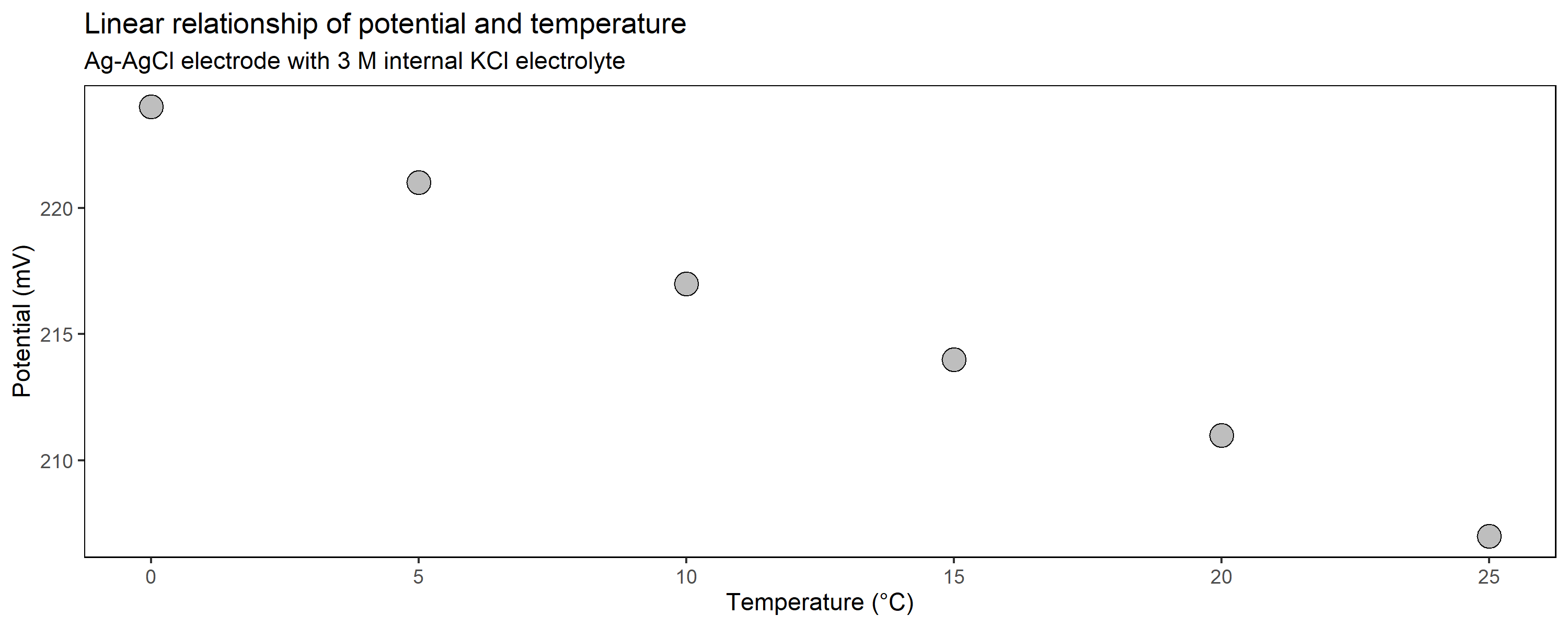

Below you can find the intercept and the slope from the linear model when you work with three common Ag-AgCl reference electrodes of variable internal electrolyte for your application:

Electrolyte solutionInterceptSlope
1 M247.76-0.2743
3 M224.09-0.6743

Besides temperature effects a redox electrode will also respond to changes in pH, since EH and pH are inversely related (pH increase = EH decrease). Most researchers use the Nernst factor of 59 mV to correct for pH variability and adjust the data to pH 7, which is commonly employed in biological sciences and reflect the pH of plant and animal cells (Mansfeldt 2020).

EH7 = EH + (pH - 7) * 59

Although the Nernst factor of -59 mV per pH unit is reasonable for most applications it must be noted that other systems have variable factors. For instance, the number of electrons (n) and protons (m) when working with manganese oxides is m/n = 2 and when working with iron oxides is 3, which would make a conversion factor of -118 and -177 more applicable (see table below):

Table 1: According to Mansfeldt 2020 and modified from Reddy and DeLaune 2018.
Reduction reactionm/nEH/pH (mV/pH unit
O2 + 4H+ + 4e- = 2H2O1.059
NO; + 2H+ + 2e- = NO2- + H201.059
2NO3- + 12H+ + 10e- = N2 + 6H201.278
MnO2 + 4H+ + 2e- = Mn2+ + 2H2O2.0118
FeOOH + 3H+ e- = Fe2+ + 2H2O3.0177
Fe3(OH)8 + 8H+ + 2e- = 3Fe2+ + 8H204.0236

Either way, whenever EH is measured the pH should be measured and recorded.
